Halogen-free connecting wire designed for work in control systems, signalling and computer systems.

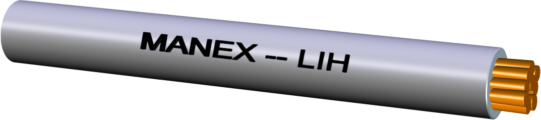

LIH – connecting wire with multi-wire conductor (LI) and halogen-free insulation (H)

Technical data

Copper, multi-wire, flexible (acc. to EN 60228)

Halogen-free blend

Working temperature:

In fixed installations
-30°C ÷ 90°C
In moving installations
-5°C ÷ 90°C




Norms / Specifications

Standard: EN 60228
Cables conform to the requirements of REACH Regulation and RoHS Directive.
Technical Characteristics
Nominal cross-section Single wire diameter Resistance at 20°C Wall insulation thickness Outer diameter of cable
(max.) (max.) (nom.) (min.) (max.)
mm2 mm mΩ/m mm mm
1 x 0,50 0,21 39,0 0,40 1,60 1,90
