LgY-K 1,5kV

Specification

Power, PVC insulated cables used in railway rolling stock. Single-conductor cables for 1500V rated voltage, fixed-mounted in electric installations of railway rolling stock.

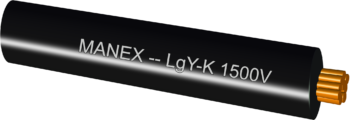

LgY-K 1,5 kV – cable with multi-wire conductor (L), flexible (g), with PVC insulation (Y), for railway rolling stock (-K), typical performance

Technical data

Conductor:
Copper, multi-wire, flexible, class 5 (acc. to EN 60228)

Insulation:
PVC (acc. to PN-88/E90115)

Permissible long-term working temperature:
-30°C ÷ +65°C

Max permissible long-term working temperature of conductor:
+70°C

Rated voltage:
1500V

Norms / Specifications

Standard: PN-88/E-90116

Cables conform to the requirements of REACH Regulation and RoHS Directive.

Technical Characteristics
Nominal cross-section Single wire diameter Resistance at 20°C Wall insulation thickness Outer diameter of cable
(max.) (max.) (nom.) (min.) (max.)
mm2 mm mΩ/m mm mm
0,75 0,21 26,000 1,5 4,7
1 0,21 19,500 1,5 4,9
1,5 0,26 13,300 1,5 5,2
2,5 0,26 7,980 1,5 5,6
4 0,31 4,950 1,5 6,2
6 0,31 3,300 1,5 7,4
10 0,41 1,910 1,7 8,9
16 0,41 1,210 1,7 10,4
25 0,41 0,780 2,0 12,8
35 0,41 0,554 2,0 13,8
50 0,41 0,386 2,0 15,2
70 0,51 0,272 2,0 17,4
95 0,51 0,206 2,4 21,3
120 0,51 0,161 2,4 22,3
