Single-conductor cables with PVC insulation for fixed installation.

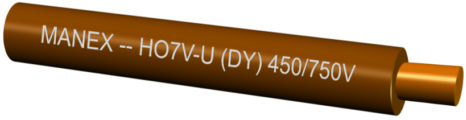

H07V-U – cable manufactured according to a harmonized standard (H), for rated voltage 450/750V (07), with PVC insulation (V) and single-wire conductor (U).
Conductor:
Copper, single-wire, class 1 (acc. to EN 60228)
Insulation:
PVC
Working temperature:
-40°C ÷ 70°C
Standard: PN-EN 50525-2-31
Cables conform to the requirements of REACH Regulation and RoHS Directive.
| Nominal cross-section | Single wire diameter | Resistance at 20°C | Wall insulation thickness | Outer diameter of cable | |
|---|---|---|---|---|---|
| (max.) | (max.) | (nom.) | (min.) | (max.) | |
| mm2 | mm | mΩ/m | mm | mm | |
| 1,5 | 1,4 | 12,1 | 0,7 | 2,6 | 3,0 |
| 2,5 | 1,8 | 7,41 | 0,8 | 3,1 | 3,5 |
| 4,0 | 2,2 | 4,61 | 0,8 | 3,6 | 4,0 |
| 6,0 | 3,0 | 3,08 | 0,8 | 4,1 | 4,5 |
| 10,0 | 3,8 | 1,83 | 1,0 | 5,3 | 5,7 |
