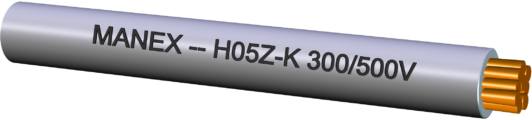

H05Z-K 300/500V

Specification

Low voltage power cables for rated voltage not exceeding 300/500V with specific properties in reaction to fire, with halogen-free insulation and with low emission of smoke.

H05Z-K – cable manufactured according to a harmonized standard (H), for rated voltage 300/500V (05), with insulation made of halogen-free blend (Z) and multi-wire flexible conductor (K)

Technical data

Conductor:
Copper, multi-wire, flexible class 5 (acc. to EN 60228)

Insulation:
Halogen-free blend, type EI5 (acc. to EN 50363-5)

Working temperature:
up to +90°C



Norms / Specifications

Standard: PN-EN 50525-3-41

Cables conform to the requirements of REACH Regulation and RoHS Directive.

Technical Characteristics
Nominal cross-section Single wire diameter Resistance at 20°C Wall insulation thickness Outer diameter of cable
(max.) (max.) (nom.) (min.) (max.)
mm2 mm mΩ/m mm mm
0,5 0,21 39,000 0,6 2,1 2,6
0,75 0,21 26,000 0,6 2,2 2,8
1 0,21 19,500 0,6 2,4 2,9
