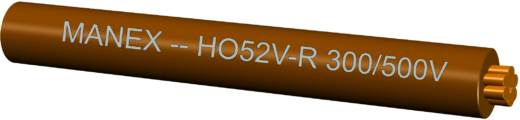

H05V2-R (LYc) 300/500V

Specification

General purpose, low voltage, single-conductor power cables, without sheath and with insulation made of thermoplastic PVC.

H05V2-R – cable manufactured according to a harmonized standard (H), for rated voltage 300/500V (05), with PVC heat-resistant insulation (V2) and multi-wire rigid conductor (R)

Technical data

Conductor:
Copper, multi-wire, rigid class 2 (acc. to EN 60228)

Insulation:
PVC – TI 3 acc. to HD 50363-3

Working temperature:
up to +90°C

Norms / Specifications

Standard: PN-EN 50525-2-31

Cables conform to the requirements of REACH Regulation and RoHS Directive.

Technical Characteristics
Nominal cross-section Single wire diameter Resistance at 20°C Wall insulation thickness Outer diameter of cable
(max.) (max.) (nom.) (min.) (max.)
mm2 mm mΩ/m mm mm
0,50 0,4 36,0 0,6 2,0 2,4
0,75 0,4 24,5 0,6 2,2 2,6
1,00 0,5 18,1 0,6 2,3 2,8
Download data sheet
