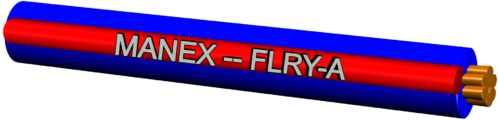

FLRY-A

Specification

Single-conductor cables designed for low voltage electric installations in vehicles.

FLRY-A – automotive low voltage cable (FL) with reduced insulation thickness (R) made of PVC (Y) and regularly stranded conductor (A)

Technical data

Conductor:
Copper, multi wire, flexible

Insulation:
PVC

Working temperature:
-40°C  ÷ 105°C

Norms / Specifications

Standard: ISO 6722-1; DIN 72551-6; ECE-R 118

Cables conform to the requirements of REACH Regulation and RoHS Directive.

Technical Characteristics
Nominal cross-section Conductor structure Resistance at 20°C Wall insulation thickness Outer diameter of cable
Number of wires Single wire diameter
(max.) (max.) (nom.) (min.) (max.)
mm2 mm mΩ/m mm mm
0,22 7 0,21 84,8 0,25 1,10 1,20
0,35 7 0,27 54,4 0,25 1,20 1,40
0,50 19 0,19 37,1 0,28 1,40 1,60
0,75 19 0,24 24,7 0,30 1,70 1,90
1,0 19 0,27 18,5 0,30 1,90 2,10
1,50 19 0,33 12,7 0,30 2,20 2,40
2,5 19 0,41 7,6 0,35 2,70 3,00
