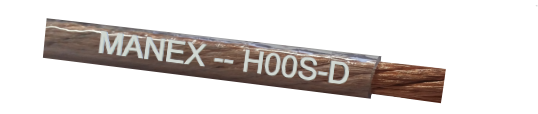

H00S-D

Specification

Single-conductor cables used in portable earthing and bridging devices.

Technical data

Conductor:
Copper, multi-wire, flexible class 6 (acc. to EN 60228)

Insulation:
General use silicone rubber, type EM 9 (acc. to EN 50363-2-1)

Max. working temperature:
180°C

Cables can be used in overhead and indoor conditions within temperatures from -40°C to 70°C.

Norms / Specifications

Standard: EN 61138

Cables conform to the requirements of REACH Regulation and RoHS Directive.

Technical Characteristics
Nominal cross-section Single wire diameter Resistance at 20°C Wall insulation thickness Outer diameter of cable
(max.) (max.) (nom.) (min.) (max.)
mm2 mm mΩ/m mm mm
16 0,2 1,210 1,4 7,5 9,5
25 0,2 0,780 1,4 8,8 11,2
35 0,2 0,554 1,4 10,1 12,7
50 0,2 0,386 1,6 11,9 15,2
70 0,2 0,272 2,1 14,6 17,4
95 0,2 0,206 2,3 16,5 19,9
120 0,2 0,161 2,7 18,9 22,0
