Single-conductor, halogen-free cables designed for low voltage electric installations in vehicles.

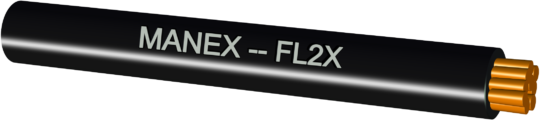

FL2X – automotive low voltage cable (FL) with insulation made of cross-linked PE (2X)
Conductor:
Copper, multi wire, flexible
Insulation:
XLPE, class C (acc. to ISO 6722)
Working temperature:
-40°C ÷ 125°C
Standard: ISO 6722
Cables conform to the requirements of REACH Regulation and RoHS Directive.
| Nominal cross-section | Conductor structure | Resistance at 20°C | Wall insulation thickness | Outer diameter of cable | ||
|---|---|---|---|---|---|---|
| Number of wires | Single wire diameter | |||||
| (max.) | (max.) | (nom.) | (min.) | (max.) | ||
| mm2 | mm | mΩ/m | mm | mm | ||
| 0,5 | 16 | 0,21 | 37,100 | 0,6 | 2,3 | |
| 0,75 | 24 | 0,21 | 24,700 | 0,6 | 2,5 | |
| 1 | 32 | 0,21 | 18,500 | 0,6 | 2,7 | |
| 1,5 | 30 | 0,26 | 12,700 | 0,6 | 3,0 | |
| 2 | 40 | 0,26 | 9,420 | 0,6 | 3,3 | |
| 2,5 | 50 | 0,26 | 7,600 | 0,7 | 3,6 | |
| 3 | 60 | 0,26 | 6,150 | 0,7 | 4,1 | |
| 4 | 56 | 0,31 | 4,710 | 0,8 | 4,4 | |
| 6 | 84 | 0,31 | 3,140 | 0,8 | 5,0 | |
| 10 | 80 | 0,41 | 1,820 | 1,0 | 6,5 | |
| 16 | 126 | 0,41 | 1,160 | 1,0 | 8,3 | |
| 25 | 196 | 0,41 | 0,743 | 1,3 | 10,4 | |
| 35 | 276 | 0,41 | 0,527 | 1,5 | 11,6 | |
| 50 | 400 | 0,41 | 0,368 | 1,5 | 13,5 | |
| 70 | 555 | 0,51 | 0,259 | 1,5 | 15,5 | |
| 95 | 740 | 0,51 | 0,196 | 1,6 | 18,0 | |
| 120 | 960 | 0,51 | 0,153 | 1,6 | 19,7 | |
