General purpose, low voltage, single-conductor power cables without sheath and with insulation made of thermoplastic PVC.

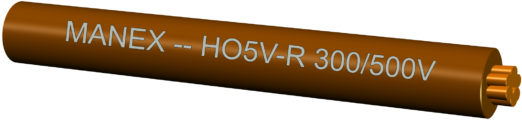

H05V-R – cable manufactured according to a harmonized standard (H), for rated voltage 300/500V (05), with PVC insulation (V) and multi-wire rigid conductor (R)
Conductor:
Copper, multi-wire, class 2 (acc. to EN 60228)
Insulation:
PVC – TI 1 acc. to HD 50363-3
Working temperature:
up to +70°C
Standard: PN-EN 50525-2-31
Cables conform to the requirements of REACH Regulation and RoHS Directive.
| Nominal cross-section | Single wire diameter | Resistance at 20°C | Wall insulation thickness | Outer diameter of cable | |
|---|---|---|---|---|---|
| (max.) | (max.) | (nom.) | (min.) | (max.) | |
| mm2 | mm | mΩ/m | mm | mm | |
| 0,50 | 0,4 | 36,0 | 0,6 | 2,0 | 2,4 |
| 0,75 | 0,4 | 24,5 | 0,6 | 2,2 | 2,6 |
| 1,00 | 0,5 | 18,1 | 0,6 | 2,3 | 2,8 |
