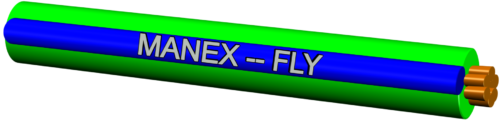

FLY

Specification

Single-conductor cables designed for low voltage electric installations in vehicles.

FLY – automotive low voltage cable (FL) with insulation made of PVC (Y).

Technical data

Conductor:
Copper, multi wire, flexible (acc. to ISO 6722-1)

Insulation:
PVC, class B (acc. to ISO 6722-1)

Working temperature:
-40°C ÷ 100°C



Norms / Specifications

Standard: ISO 6722-1; ECE-R 118

Cables conform to the requirements of REACH Regulation and RoHS Directive.



Technical Characteristics
Nominal cross-section Conductor structure Resistance at 20°C Wall insulation thickness Outer diameter of cable
Number of wires Single wire diameter
(max.) (max.) (nom.) (min.) (max.)
mm2 mm mΩ/m mm mm
0,50 16 0,21 37,1 0,60 2,0 2,3
0,75 24 0,21 24,7 0,60 2,2 2,5
1,00 32 0,21 18,5 0,60 2,4 2,7
1,50 30 0,26 12,7 0,60 2,7 3,0
2,00 40 0,26 9,42 0,60 3,0 3,3
2,50 50 0,26 7,6 0,70 3,3 3,6
3,00 44 0,31 6,15 0,70 3,8 4,1
4,00 56 0,31 4,71 0,80 4,0 4,4
6,00 84 0,31 3,14 0,80 4,6 5,0
10,00 80 0,41 1,82 1,00 5,9 6,5
16,00 126 0,41 1,16 1,00 7,7 8,3
25,00 196 0,41 0,743 1,30 9,4 10,4
35,00 276 0,41 0,527 1,30 9,6 11,6
50,00 400 0,41 0,368 1,50 11,5 13,5
70,00 555 0,41 0,259 1,50 13,5 15,5
95,00 740 0,41 0,196 1,60 16,0 18,0
120,00 960 0,41 0,153 1,60 17,7 19,7
