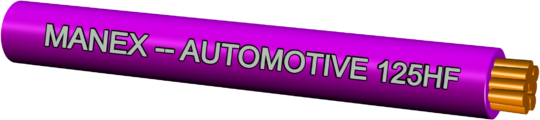

Single-conductor, halogen-free cables designed for low voltage electric installations in vehicles.
Conductor:
Copper, multi wire, flexible (acc. to ISO 6722-1)
Insulation:
Class C (acc. to ISO 6722-1) – halogen-free
Working temperature:
-40°C ÷ 125°C
Standard: ISO 6722-1
Cables conform to the requirements of REACH Regulation and RoHS Directive.
| Nominal cross-section | Conductor structure | Resistance at 20°C | Wall insulation thickness | Outer diameter of cable | ||
|---|---|---|---|---|---|---|
| Number of wires | Single wire diameter | |||||
| (max.) | (max.) | (nom.) | (min.) | (max.) | ||
| mm2 | mm | mΩ/m | mm | mm | ||
| 0,35 | 12 | 0,21 | 54,4 | 0,25 | 1,2 | 1,4 |
| 0,50 | 16 | 0,21 | 37,1 | 0,28 | 1,40 | 1,60 |
| 0,75 | 24 | 0,21 | 24,7 | 0,30 | 1,7 | 1,9 |
| 1,00 | 32 | 0,21 | 18,5 | 0,30 | 1,9 | 2,1 |
| 1,50 | 30 | 0,26 | 12,7 | 0,30 | 2,2 | 2,4 |
| 2,00 | 40 | 0,26 | 9,42 | 0,35 | 2,5 | 2,8 |
| 2,50 | 50 | 0,26 | 7,6 | 0,35 | 2,7 | 3,0 |
| 4,00 | 56 | 0,31 | 4,71 | 0,40 | 3,4 | 3,7 |
| 6,00 | 84 | 0,31 | 3,14 | 0,40 | 4,0 | 4,3 |
| 10,00 | 80 | 0,41 | 1,82 | 0,60 | 5,3 | 6,0 |
| 16,00 | 126 | 0,41 | 1,16 | 0,65 | 6,4 | 7,2 |
| 25,00 | 196 | 0,41 | 0,743 | 0,65 | 7,9 | 8,7 |
