Power connection cables for electrical machinery and devices with insulation made of heat-resistant PVC.

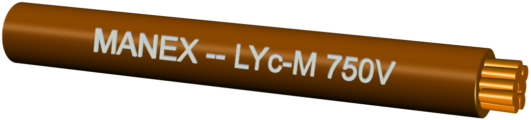

LYc-M 750V – cable with multi-wire conductor (L), with insulation made of heat-resistant PVC (Yc), for electrical machinery (-M), for rated voltage 750V
Conductor:
Copper, multi-wire, flexible (acc. to PN-87/E-90071)
Insulation:
PVC
Working temperature:
-40°C ÷ 105°C
Maximum working voltage:
750V
Standard: PN-87/E-90071
Cables conform to the requirements of REACH Regulation and RoHS Directive.
| Nominal cross-section | Single wire diameter | Resistance at 20°C | Wall insulation thickness | Outer diameter of cable | |
|---|---|---|---|---|---|
| (max.) | (max.) | (nom.) | (min.) | (max.) | |
| mm2 | mm | mΩ/m | mm | mm | |
| 0,35 | 0,21 | 54,3 | 0,8 | 2,8 | |
| 0,5 | 0,21 | 38,0 | 0,8 | 3,0 | |
| 0,75 | 0,21 | 25,3 | 0,8 | 3,2 | |
| 1,0 | 0,21 | 19,0 | 0,8 | 3,3 | |
| 1,5 | 0,26 | 12,6 | 0,8 | 3,6 | |
| 2,5 | 0,26 | 7,6 | 0,8 | 4,1 | |
| 4,0 | 0,31 | 4,75 | 0,9 | 4,8 | |
